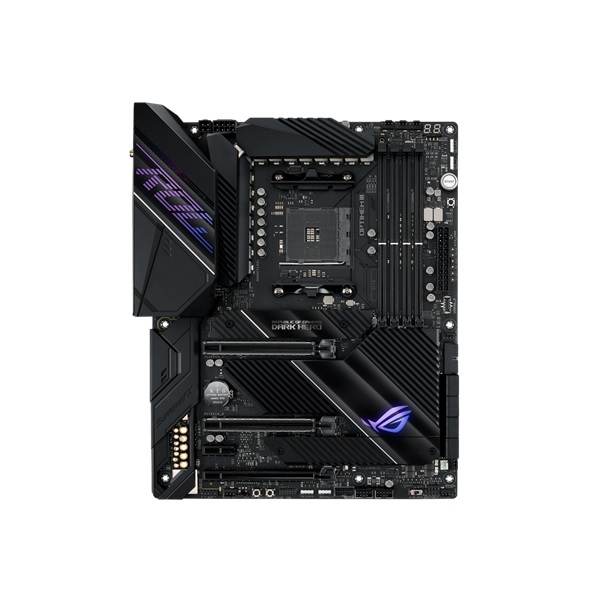

Asus ROG Crosshair VIII Dark Hero AMD X570 ATX Gaming Motherboard

Product Code: 90MB1760-M0EAY0 SKU: PCK11405 Categories: , , ,
Asus
Availability:

1 in stock


  • AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
  • Comprehensive thermal design: Passive chipset heatsink, M.2 aluminum heatsinks and ROG Water Cooling Zone.
  • Robust power delivery: Designed power solution 14+2 TI power stages rated for 90A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
  • High-performance networking: On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst VI software.
  • 5-Way Optimization: Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for your rig.
  • DIY Friendly Design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS flashback and premium components for maximum endurance.
  • Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers
  • Industry-leading ROG audio: ROG SupremeFX S1220 is combined with the venerable ESS® ES9023P to deliver high-fidelity audio to headsets and exotic cans.

KD 185.000 KD 195.000

1 in stock

Product price
Additional options total:
Order total:

ROG CROSSHAIR VIII DARK HERO

Upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3.

PERFORMANCE

ROG Crosshair VIII Dark Hero boasts an optimized power design layout and all the cooling headers you need to handle the prodigious power of the latest AMD Ryzen processors.

Teamed Power Architecture

Modern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

ASUS Optimem III

Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.

COOLING

Maintaining system stability is paramount under high load, so Crosshair VIII Dark Hero employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Featuring premium components and multiple fan headers, Crosshair VIII Dark Hero is fully armed to provide the best foundation for gaming systems.

Optimization

ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want.

CONNECTIVITY

ROG Crosshair VIII Dark Hero offers advanced connectivity, including WiFi 6 (AX200) and dual Ethernet with Intel® 1Gb and Realtek 2.5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot.

Personalize

In addition to extraordinary performance, ROG Crosshair VIII Dark Hero provides extensive styling and customization options to let you build a system that truly stands apart.

SKU: PCK11405 Categories: , , ,
Brand Name

Asus

Socket

AM4

Speed MHz

2133, 2400, 2666, 2800, 2933, 3000, 3200, 3400, 3466, 3600, 3800, 3866, 4000, 4133, 4266, 4333, 4400, 4600, 4800, 4866, 5000, 5100

CPU

AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
* Refer to www.asus.com for CPU support list

Chipset

AMD X570

Memory

4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/5000(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
4 x DIMM, Max. 128GB, DDR4 3200/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
AMD Ryzen™ 4000 G-Series Desktop Processors
AMD RyzenTM 2000 Series Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Multi-GPU Support

AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors>
AMD Ryzen™ 3000 G-Series/ 2000 G-Series Desktop Processors
Supports NVIDIA 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports AMD 2-Way CrossFireX™ Technology

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
AMD RyzenTM 4000 G-Series / 2000 Series Processors
AMD RyzenTM 3000 G-Series / 2000 G-Series Processors
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1

Storage

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
AMD Ryzen™ 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors :
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD X570 chipset :
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
Support Raid 0, 1, 10

LAN

ASUS LANGuard
Intel® I211-AT
Realtek® RTL8125-CG 2.5G LAN

Wireless Data Network

Supports PCIe interface
2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Intel® Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160

Bluetooth

Bluetooth v5.1*
*BT 5.1 function will be ready in Windows 10 build 19041 or later.

Audio

ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
– Dedicated audio PCB layers
– Unique de-pop circuit
– Audio Cover
– Premium Japanese audio capacitors
– Power pre-regulator: Reduces power input noise to ensure consistent performance
– Impedance sense for front and rear headphone outputs
– High quality120dBSNR stereo playback outputand113dBSNR recording input
– ESS® ES9023P
– Supports up to 32-Bit/192kHz playback
Audio Feature :
– SupremeFX Shielding™ Technology
– Gold-plated jacks
– Optical S/PDIF out port(s) at back panel
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

USB Ports

AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors :
AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors :
4 x USB 3.2 Gen 2 port(s)
4 x USB 3.2 Gen 1 port(s)
AMD X570 chipset :
1 x USB 3.2 Gen 2 front panel connector port(s)
6 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)

Special Features

– ASUS USB BIOS FlashBack
AURA :
– Aura RGB Strip Headers
– Addressable Gen 2 Header
ASUS EZ DIY :
ASUS Q-Design :
– ASUS Q-Code
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-Connector

Back I/O Ports

1 x BIOS FlashBack Button(s)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
1 x Anti-surge 2.5G LAN (RJ45) port
Anti-surge LAN (RJ45) port

Internal I/O Ports

2 x M.2 Socket 3
2 x Aura RGB Strip Headers
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x TPM connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
1 x Reset button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Start button
1 x Speaker connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)

Accessories

1 x M.2 SSD screw package(s)
User´s manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG big sticker
1 x Q-Connector
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x ROG Thank you card

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Manageability

WOL, PXE

Operating System

Windows® 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
