MSI 750W PSU MPG A750GF 80 Plus Gold Full Modular Power Supply

Product Code: 306-7ZP0B18-CE0 SKU: PCK10188 Categories: , ,
MSI
Availability:

Out of stock


  • Supports the NVIDIA GeForce RTX™ 30 Series GPUs
  • Full modular cable design
  • Flat cable equipment
  • 10-year warranty
  • 80 Plus Gold certified for high efficiency
  • 100% all Japanese 105oC capacitor
  • Active PFC design
  • Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
  • LLC Half Bridge Topology with DC-DC module design

GPU SUPPORT FOR ALL

The MPG gaming power supply can support the NVIDIA GeForce RTX™ 30/20 Series and AMD GPUs. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

100% JAPANESE 105° C CAPACITORS

Aiming for unwavering product quality and performance stability, the MPG gaming power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

ONLY WHAT YOU NEED

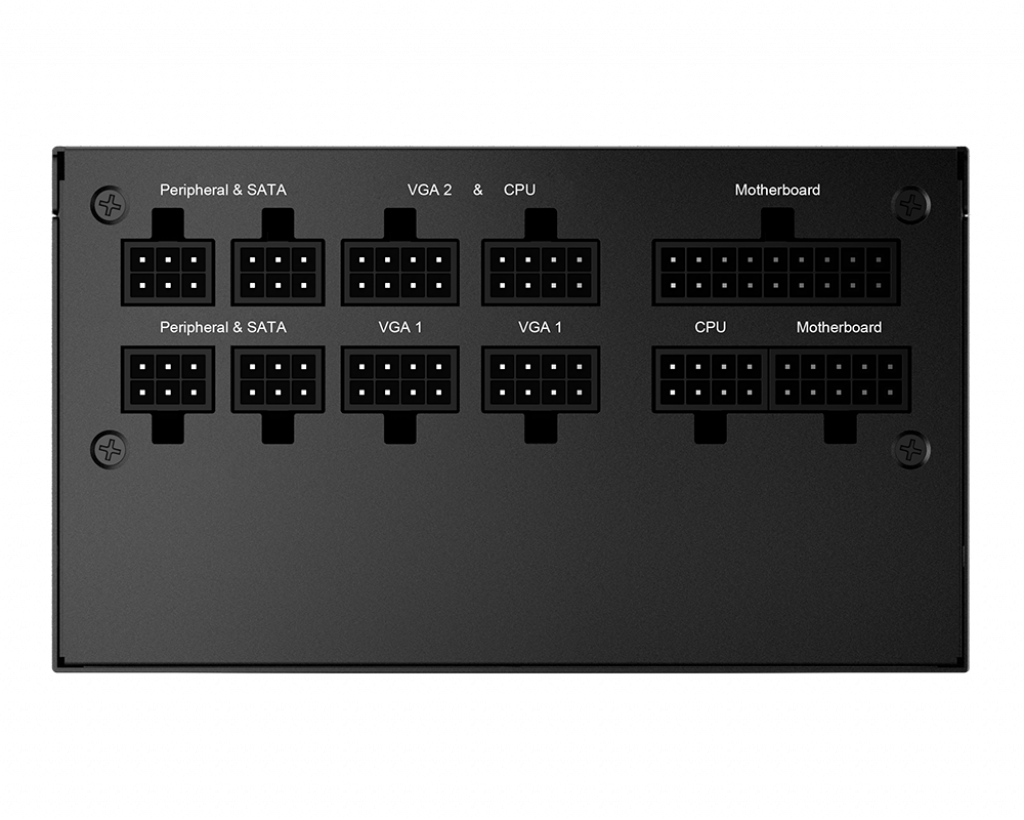

Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply’s fully modular design, it means that only the connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build.

ALL THE MORE ORGANIZED

All of the MPG gaming power supply’s cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. Use the cables you need, and store the rest in the included cable bag.

FEELS RIGHT AT HOME

The MPG gaming power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.

ALLOY COPPER CONNECTOR TERMINALS

The MPG gaming power supply’s CPU, VGA, and MB connectors utilize alloy copper terminals that can withstand higher current ratings than traditional phosphor bronze cable terminals.

spec 01

X1 ATX CONNECTOR
24-PIN
600mm ± 10mm
spec 02

X6 PCI-E CONNECTOR
8-PIN (6+2)
500mm ± 10mm
spec 03

X8 SATA CONNECTOR
(SATA)
950mm ± 10mm
spec 04

X2 EPS CONNECTOR
8-PIN (4+4)
700mm ± 10mm
spec 05

X5 PERIPHERAL /
FDD CONNECTOR
4-PIN
1100mm ± 10mm
SKU: PCK10188 Categories: , ,
Brand Name

MSI

Power

750w

Connectivity
Total Connectors 1 x 20+4-Pin ATX Motherboard
2 x 4+4-Pin EPS CPU
6 x 6+2-Pin PCIe
8 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy
Cable Design Modular
Electrical
Total Wattage 750 W
Number of +12 V Rails 1
Combined Power for +12 V 750 W
Max Load for +12 V 25 to 30 A
Combined Power for +3.3/+5 V 120 W
Max Load for +3.3 V 22 A
Max Load for +5 V 22 A
Max Power for +5 Vsb 750 W
Max Load for +5 Vsb 2.5 A
Max Power for -12 V 750 W
Max Load for -12 V 0.3 A
Peak Power 750 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Voltage Regulation +3.3 V: ± 4%, +5 V: ± 4%, +12 V: ± 4%, -12 V: ± 10%, +5 Vsb: ± 4%
Ripple and Noise +3.3 V: 40 mV, +5 V: 40 mV, +12 V: 60 mV, -12 V: 50 mV, +5 Vsb: 50 mV
General
Efficiency Rating 80 PLUS Gold
Efficiency 87% at 20% Load
90% at 50% Load
87% at 100% Load
Cooling
Fan Size 140 mm
Physical
Form Factor ATX
Protection Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Dimensions 5.9 x 6.3 x 3.4″ / 150 x 160 x 86 mm
Packaging Info
Package Weight 6.5 lb
Box Dimensions (LxWxH) 11.5 x 8.3 x 5.4″
