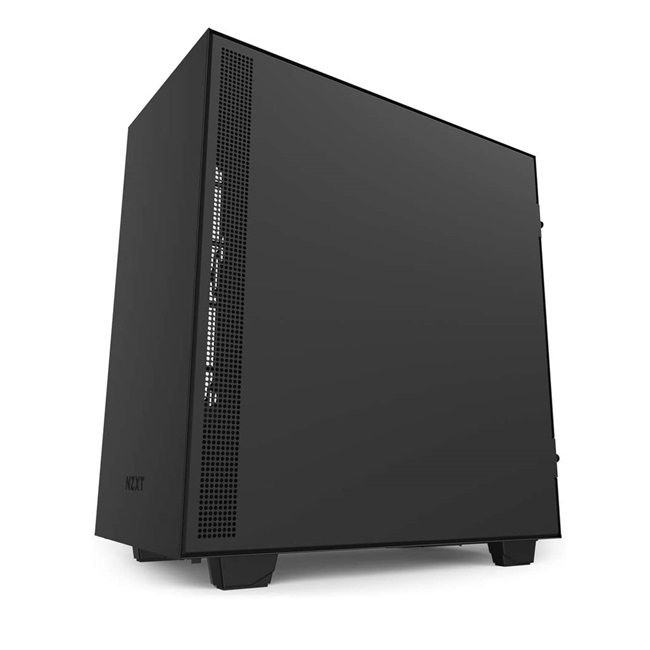

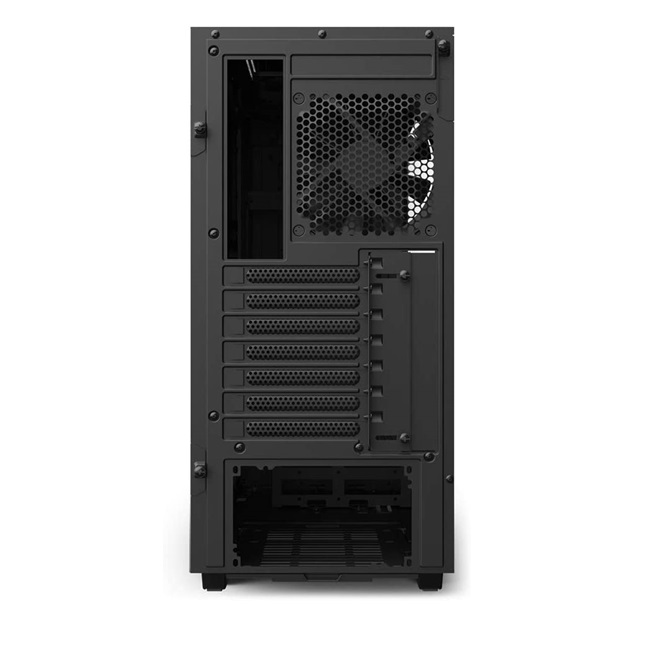

NZXT H510 Mid Tower ATX PC Case, Matte Black

Product Code: CA-H510B-B1 SKU: PCK10648 Categories: , ,
NZXT
Availability:

2 in stock


  • Iconic cable management bar and uninterrupted tempered-glass side panel
  • USB 3.2 Gen2-compatible USB-C connector on the front panel
  • Cable routing kit with pre-installed channels and straps
  • Two Aer F120mm fans and removable filter on PSU intake
  • Removable bracket designed for radiators up to 280mm

KD 27.000

2 in stock

Product price
Additional options total:
Order total:

Compact Mid-Tower Case with Tempered Glass

  • We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.
  • With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
  • The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
  • Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
  • Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling.
    *Case version fans and specs vary from retail version
SKU: PCK10648 Categories: , ,
Brand Name

NZXT

Case Type

ATX, Mid Tower

TECHNICAL SPECIFICATION

Dimensions W: 210mm H: 435mm D: 428mm (without feet)
W: 210mm H: 460mm D: 428mm (with feet)
Material(s) SGCC Steel, Tempered Glass
Weight 6.6 kg
Motherboard Support Mini-ITX, MicroATX, and ATX
Front I/O Ports 1x USB 3.1 Gen 2 Type-C
1x USB 3.1 Gen 1 Type-A
1x Headset audio Jack
Front I/O internal header
1x USB 3.1 Gen 2 Internal Header
1x USB 3.1 Gen 1 Internal Header
1x HD Audio Header
Filters All Air Intakes
Included Accessories Installation screws
10x Cable ties
1x Headset Audio Jack splitter (4 pole to 3 pole)
Drive Bays 2.5”: 2+1
3.5”: 2+1
Expansion Slots 7
Radiator Support Front: 2x 140 or 2x 120mm with Pull
Rear: 1x 120mm
Fan Support Front: 2 x 120/ 2 x 140mm
Top: 1x 120mm/ 1x 140mm (1 Aer F120 Case Version included)
Rear: 1x 120mm (1 Aer F120 Case Version included)
Fan Specs Aer F120 (Case Version)
Speed: 1200 ± 200 RPM
Airflow: 50.42 CFM
Noise: 28 dBA
Bearing: Rifle Bearing
Clearance Cable Management: 19-23mm
GPU Clearance: Up to 381mm
CPU Cooler: Up to 165mm
Front Radiator: 60mm
Rear Radiator: 60mm
Reservoir & Pump: Up to 180mm (Along cable bar), Up to 86mm (Along bottom panel)
Model Number CA-H510B-B1
EAN 5060301695058
UPC 815671014757
