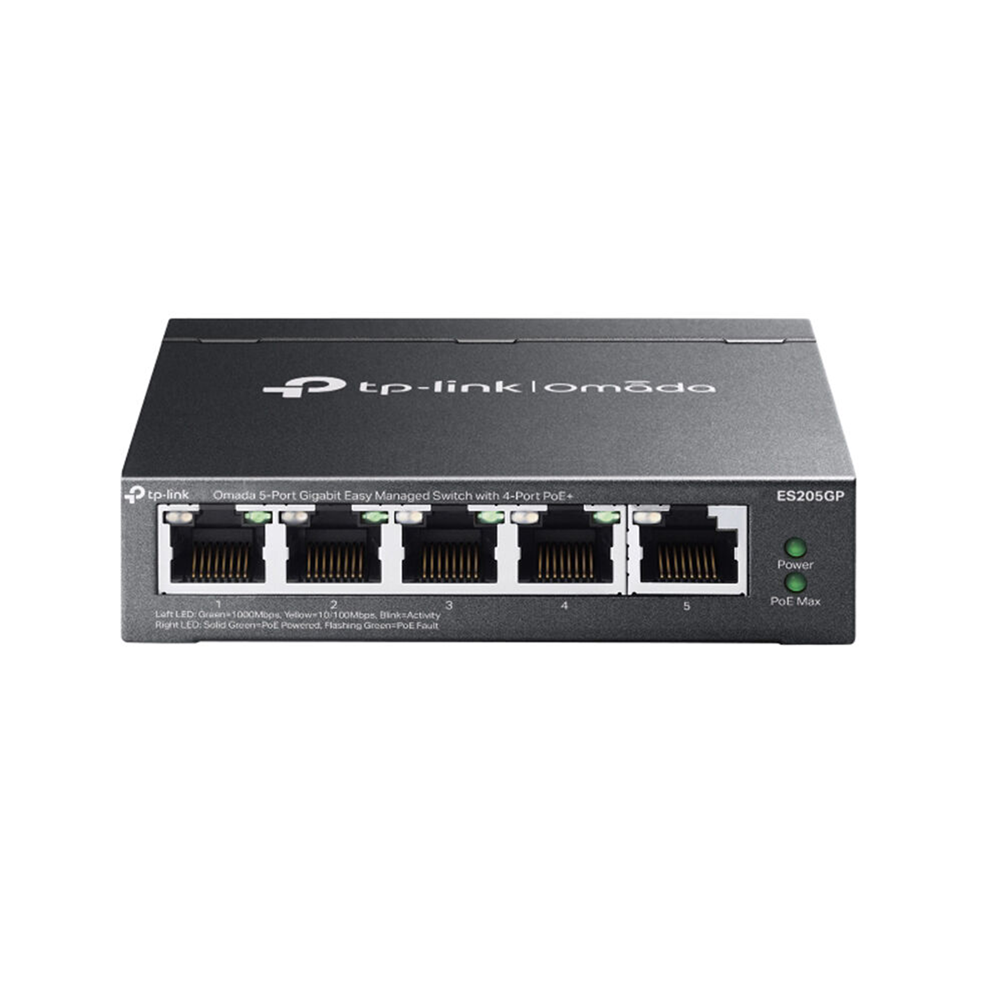

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

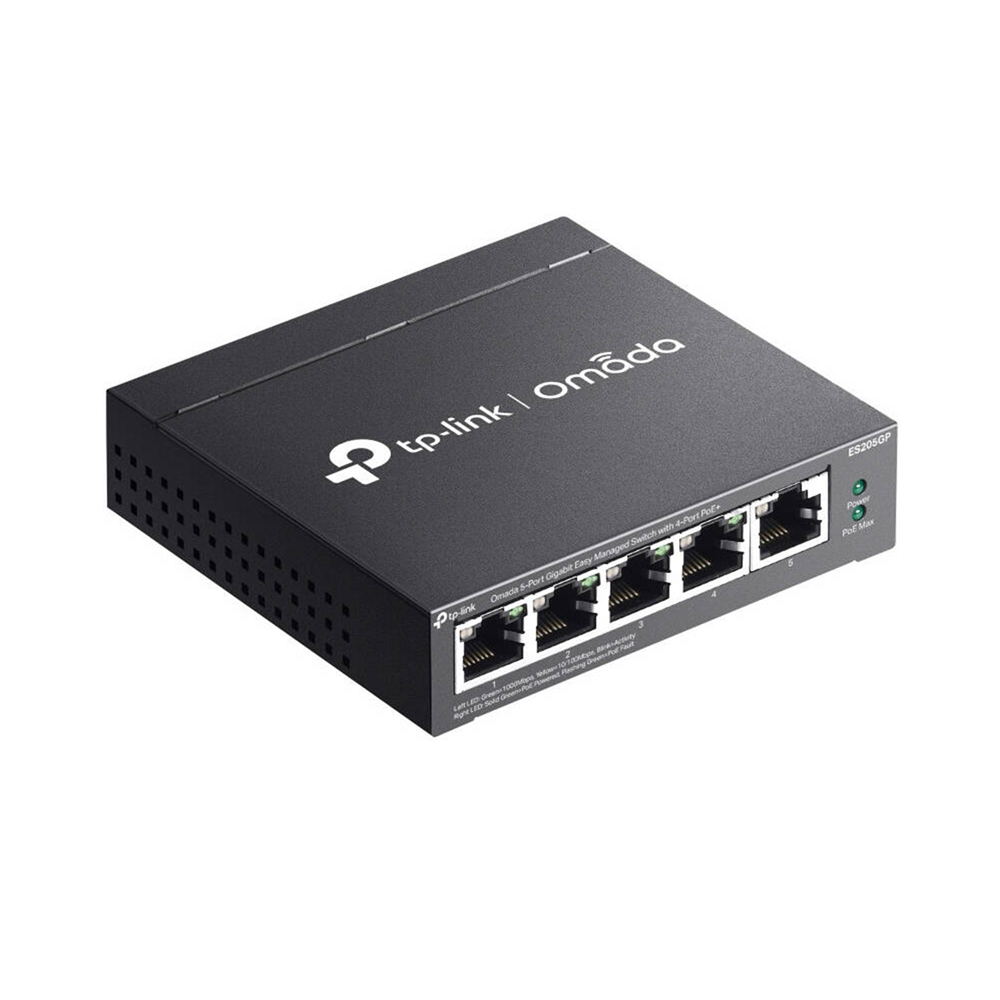

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ - Image 2

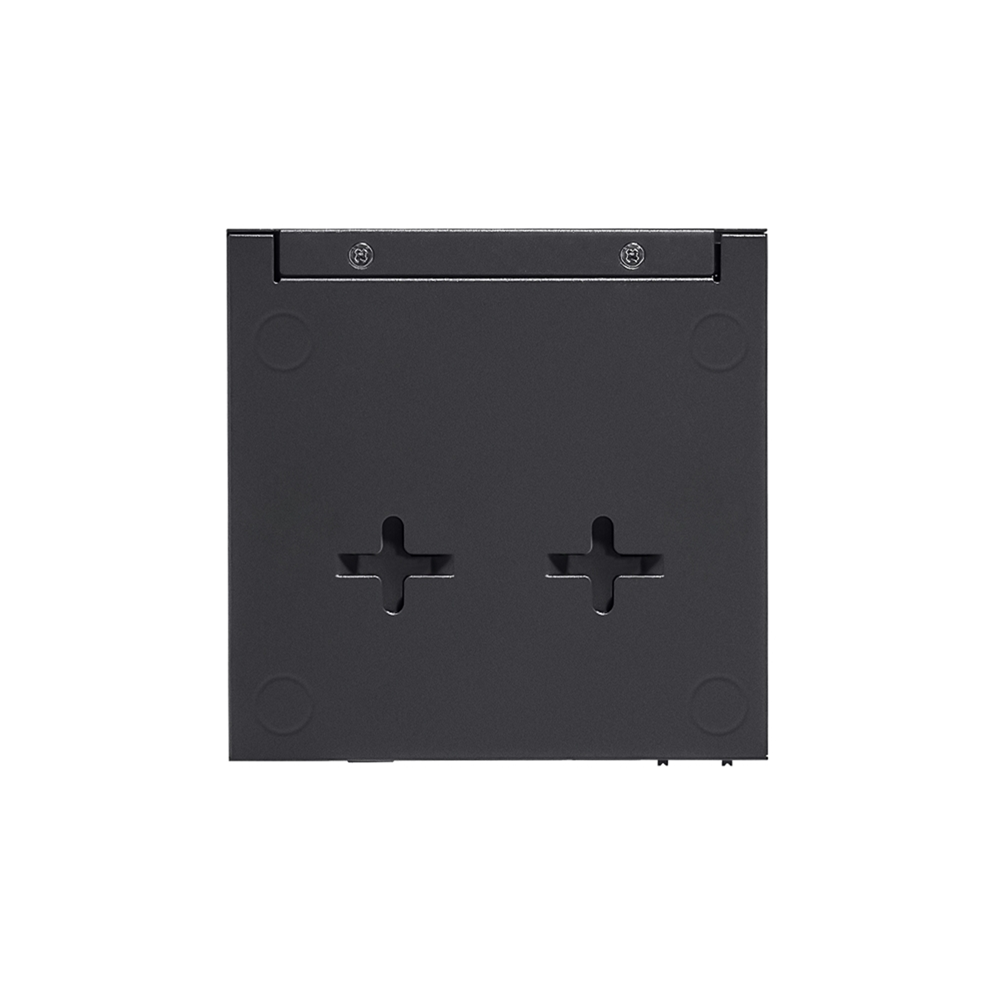

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ - Image 3

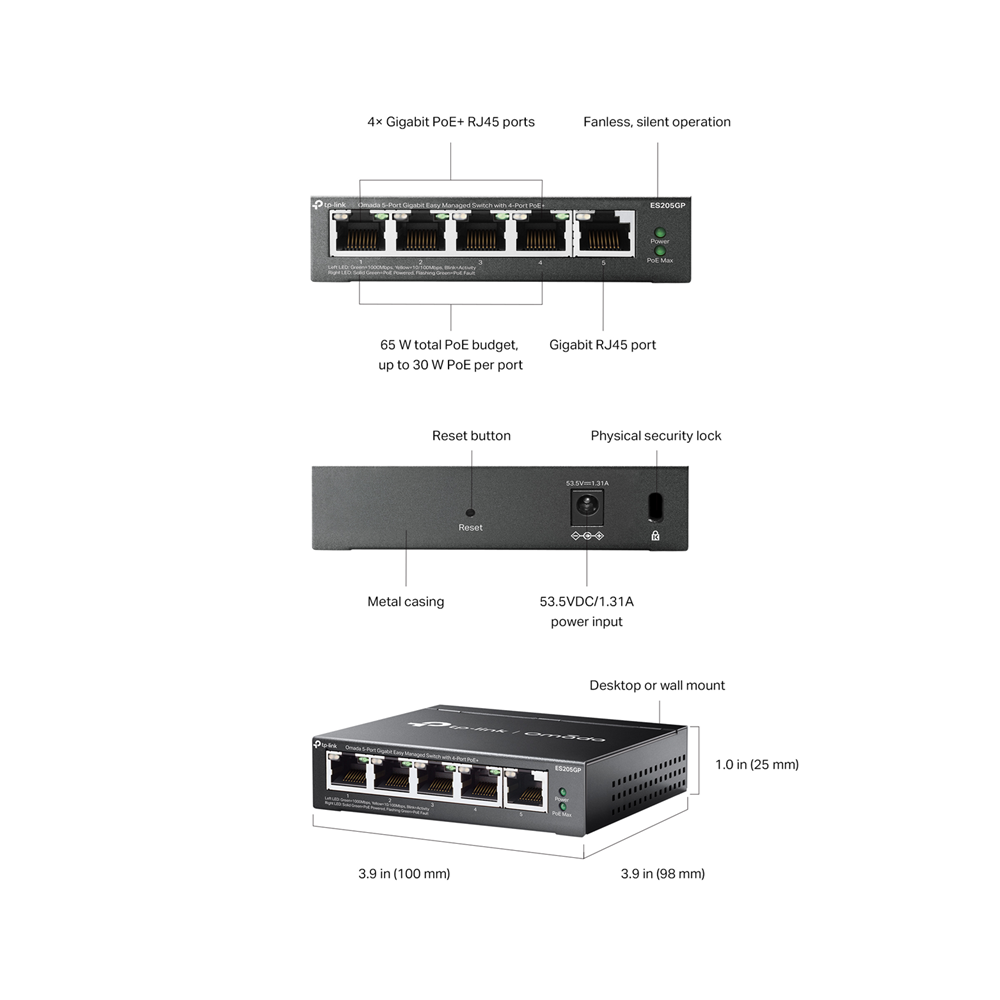

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ - Image 4
ES205GP
ES205GP1
ES205GP12
ES205GP121
, ,

TP-Link ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Product Code: ES205GP SKU: PCK18428 Categories: , ,
TP-Link
Availability:

In stock

TP-Link

65W Power Budget, with up to 30W for each PoE port*
Durable metal casing and desktop/wall mounting design
Centralized Cloud Management via the web or the Omada app

KD 15.000

In stock

Buy Now

TP-Link

  • 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design

    • 5× Gigabit RJ45 Ports (4× PoE+)

    • 65W Total PoE Budget*

    • Fanless Design for Silent Operation

    • Easy Centralized Management†

  •  Automatic Loop Prevention

  • PoE Auto Recovery‡

  • Traffic Separation

  • Traffic Prioritization△

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.



SKU: PCK18428 Categories: , ,
Brand Name

TP-Link
Features

5-Port, Gigabit, Managed Switch, PoE Switch, PoE+, Switch
HARDWARE FEATURES
Interface • 5× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at PoE+ and 802.3af PoE)
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation • Desktop
• Wall Mount
Physical Security Lock √
Power Supply DC Power Adapter (Output: 53.5 VDC/ 1.31 A)
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65 W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Surge Protection ±6kV
PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.4 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control△
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Content • ES205GP
• Power Adapter
• Installation Guide
• Rubber Feet
Environment • Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
