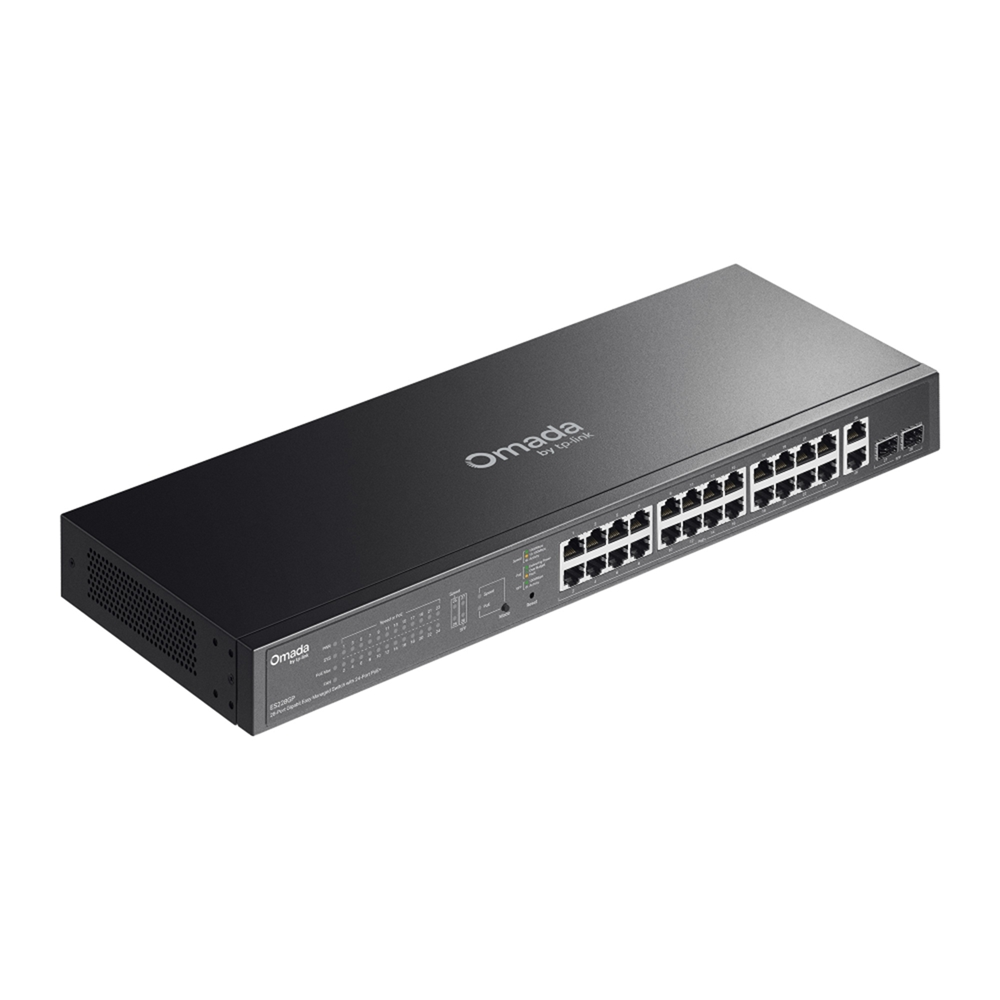

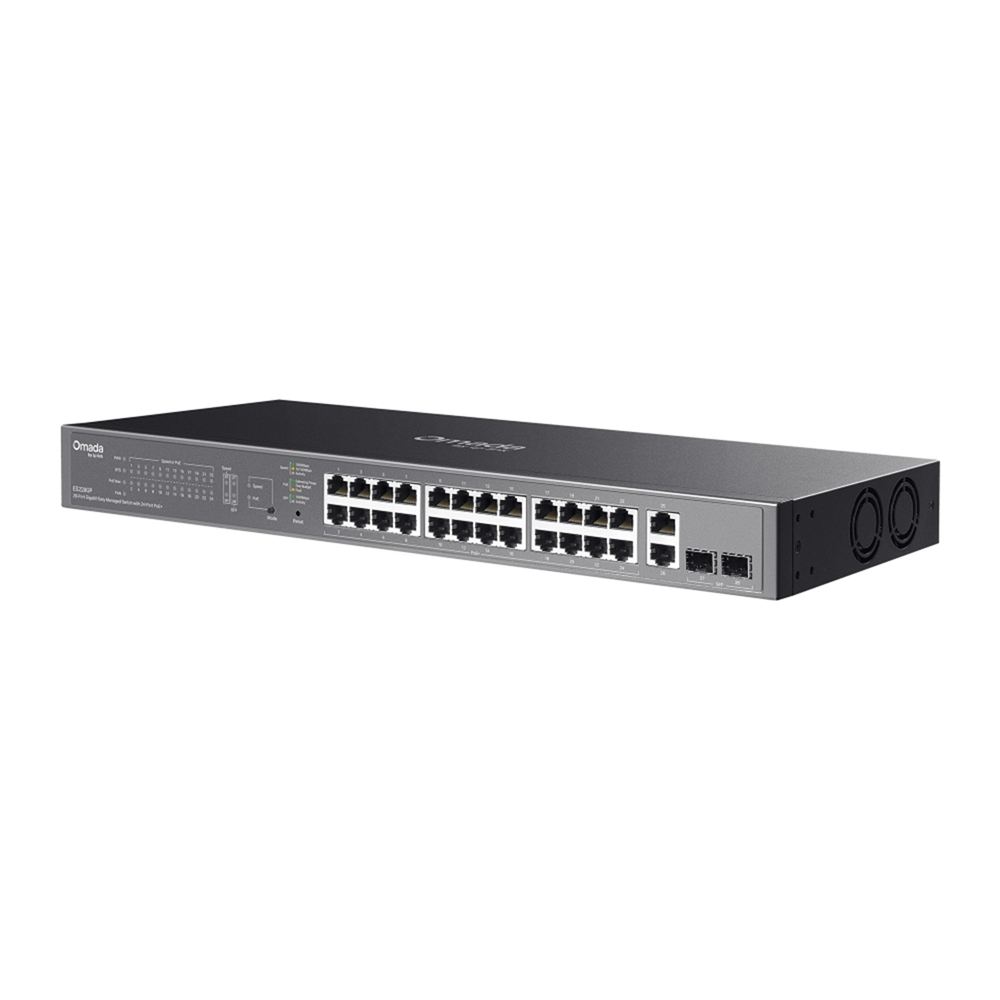

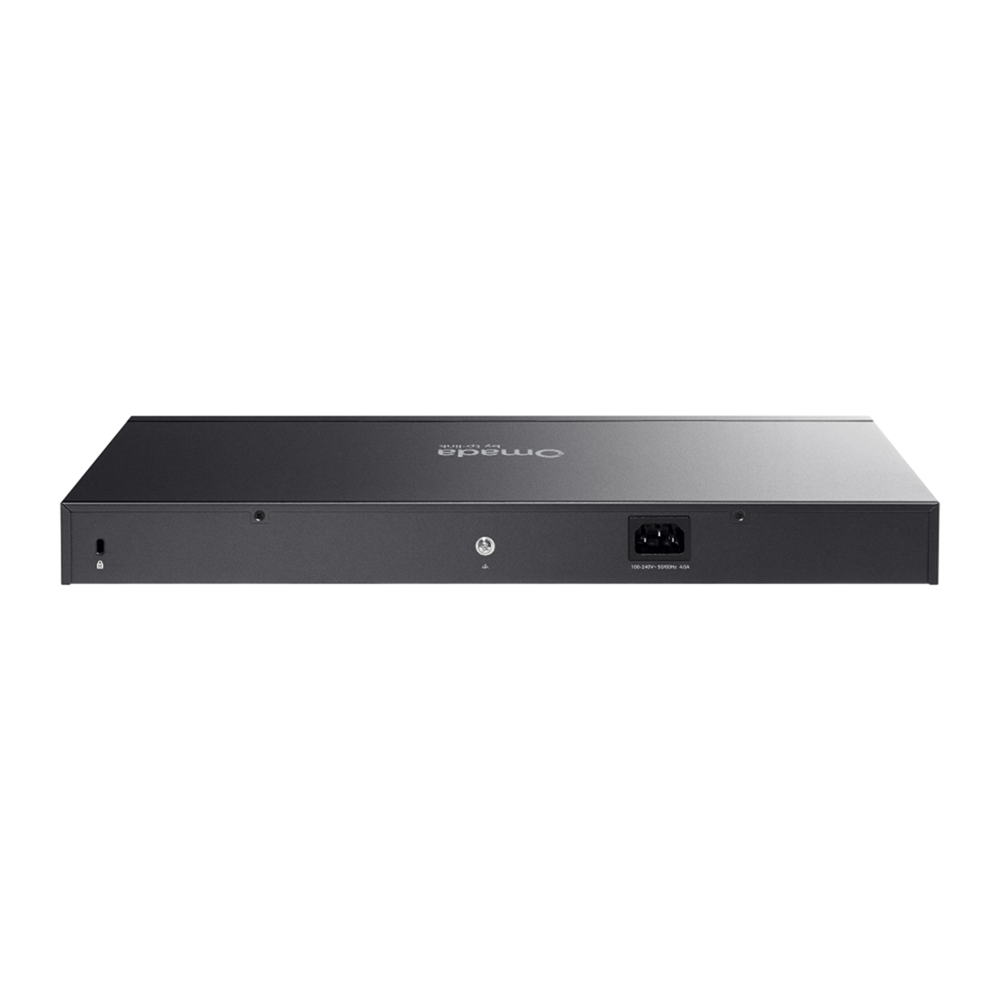

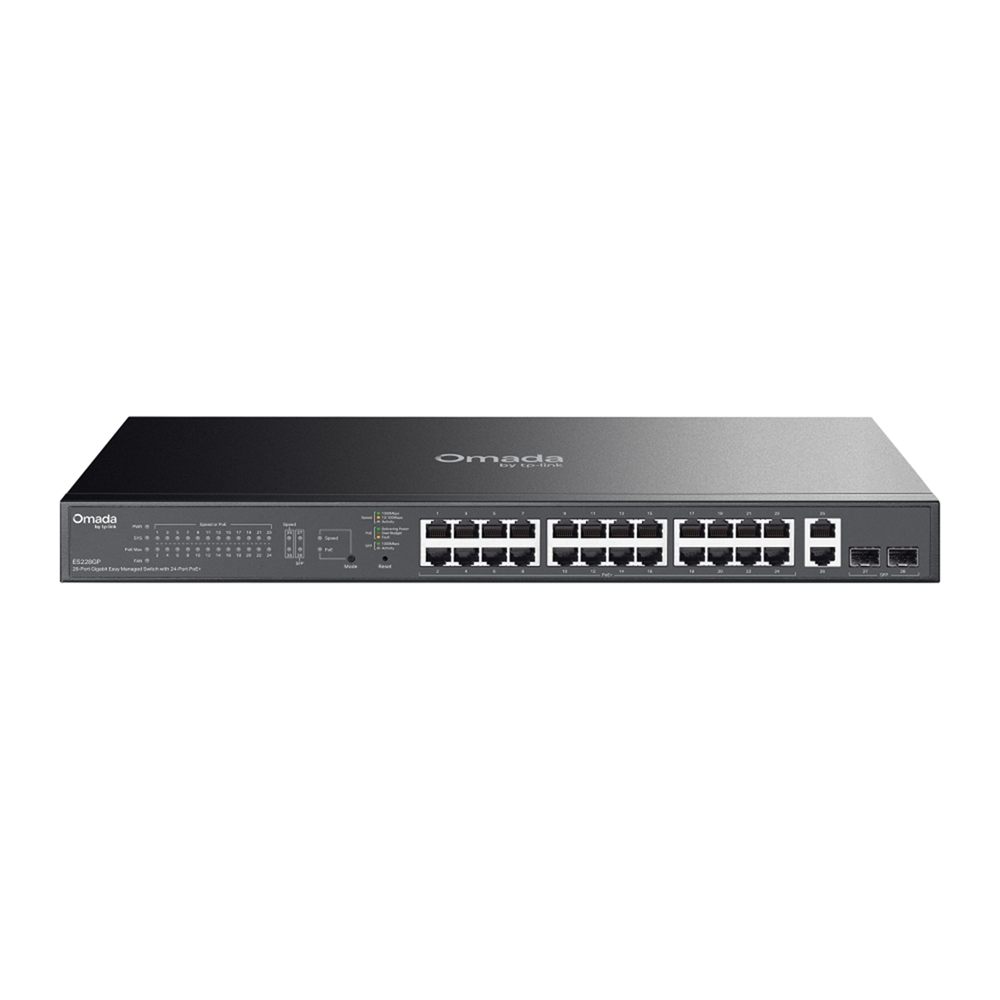

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - Image 2
TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - Image 3
TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - Image 4
ES228GP
ES228GP12
ES228GP1
ES228GP123
, ,

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+

Product Code: ES228GP SKU: PCK18429 Categories: , ,
TP-Link
Availability:

In stock

TP-Link

2× Gigabit SFP Slots
26× 10/100/1000Mbps RJ45 ports
250W PoE Budget, with up to 30W for each PoE port*
Durable metal casing and desktop/wall mounting design
Centralized Cloud Management via the web or the Omada app

KD 59.000

In stock

Buy Now

TP-Link

  • 26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
  • 2× Gigabit SFP Slots
  • 250W PoE Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 820ft PoE**, Remote Camera Reboot†, QoS, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack mounting design

  • 28× Gigabit Ports (24× PoE+, 2× RJ45, 2× SFP)

  • 250W Total PoE Budget*

  • Easy Centralized Management△

  • Up to 820ft PoE Transmission**

  • Remote Camera Reboot†

  • Traffic Separation
  • Traffic Prioritization

  • Automatic Loop Prevention

Omada Central Essentials — A Free and Easy Cloud-Based Network Management

Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses. Learn More >



SKU: PCK18429 Categories: , ,
Brand Name

TP-Link
Features

24-Port, Gigabit, Managed Switch, PoE Switch, PoE+, SFP, Switch
HARDWARE FEATURES
Interface • 26× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× Gigabit SFP Slots
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmount
Physical Security Lock √
Power Supply 100–240V AC, 50/60Hz 4.0A
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 24 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Surge Protection ±6kV
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.67 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control△
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Content • ES228GP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
Environment • Operating Temperature: -5℃~45℃ (23℉~113℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
