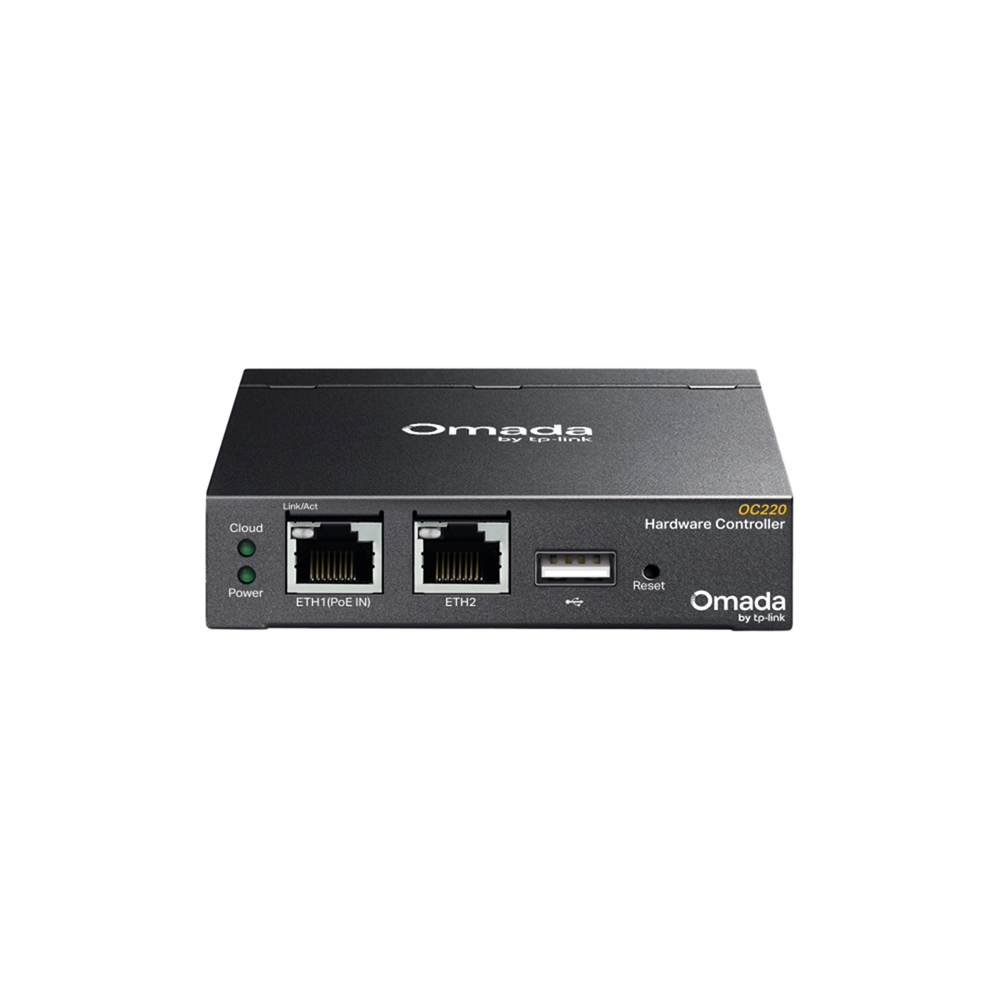

TP-Link OC220 Omada Hardware Controller

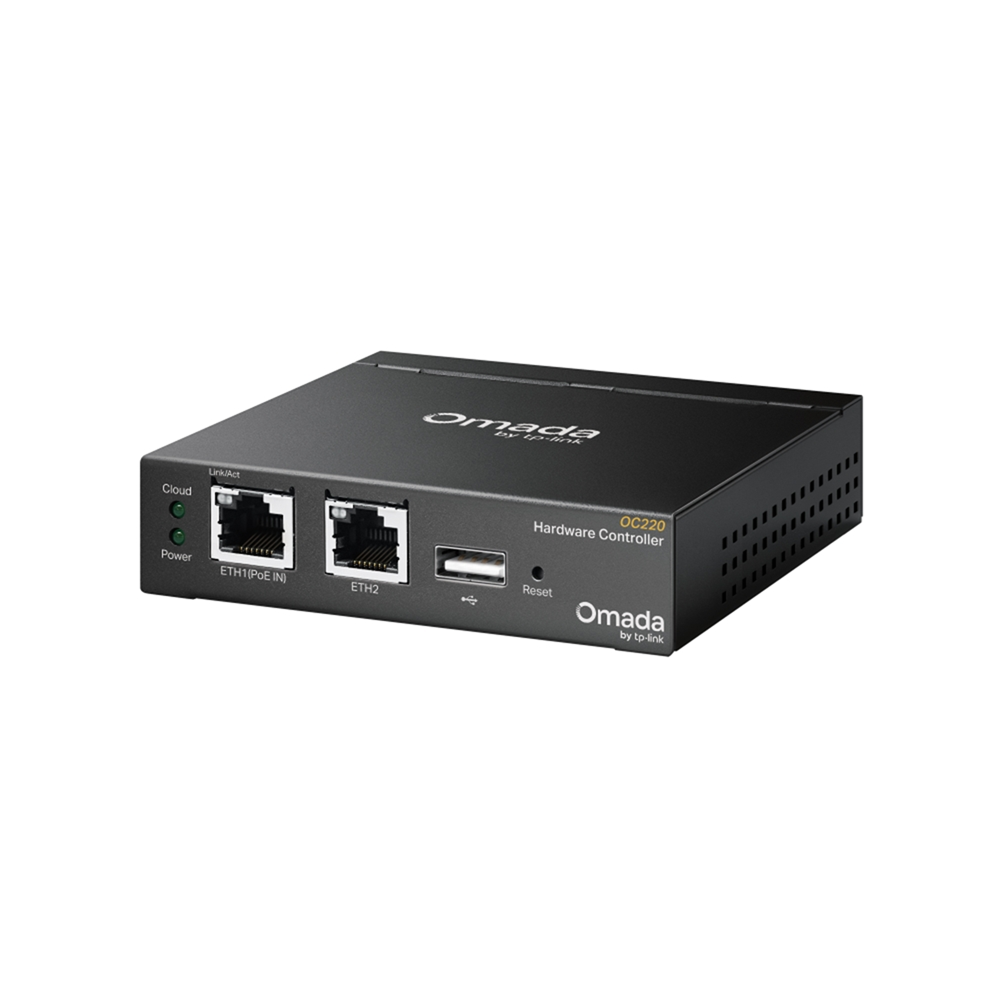

TP-Link OC220 Omada Hardware Controller - Image 2

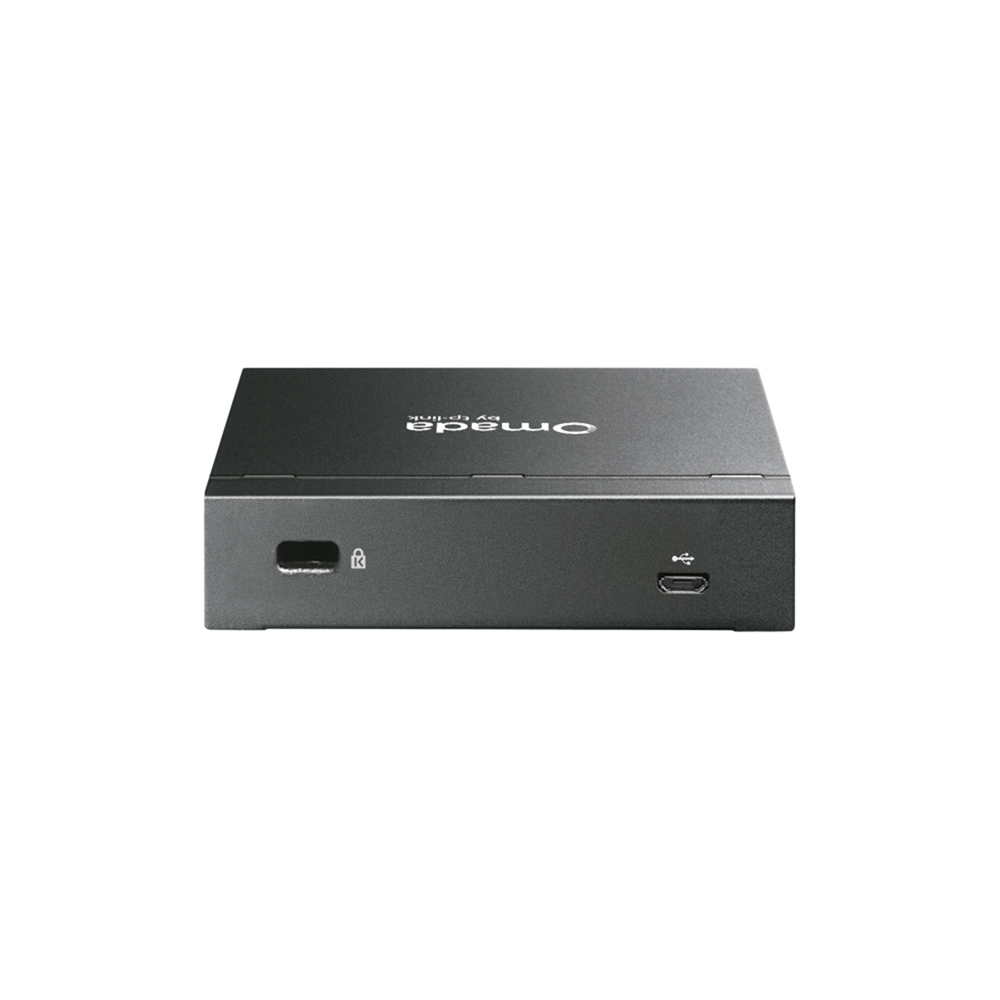

TP-Link OC220 Omada Hardware Controller - Image 3
TP-Link OC220 Omada Hardware Controller - Image 4
oc220
oc22012
oc2201
oc220120
, ,

TP-Link OC220 Omada Hardware Controller

Product Code: OC220 SKU: PCK18427 Categories: , ,
TP-Link
Availability:

In stock

TP-Link

10 Omada gateways*
20 Omada switches*
100 Omada access points*
2 certain DeltaStream GPON OLTs*

KD 28.000

In stock

Buy Now

TP-Link

  • Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
  • Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
  • On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
  • Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.
  • Flexible Deployment: Powerd via 802.3af PoE or Micro USB (DC 5V/Minimum 1A) with a compact desktop or wall mount installation.

A Mini yet Mighty
Omada Controller that Works Without a Running PC/Server

  • Manage up to 130 Devices*

  • No Need for a Running PC/Server

  • Optional Cloud with No License Fees

  • Manage via Omada App

  • Flexible 802.3af PoE or Micro USB Power Supply

  • Durable Metal Casing

  • Fanless for Silent Operation

  • USB Port for Data Backup

Hybrid Cloud Management for Maximum Convenience

Remotely or locally manage up to 100 Omada access points, 10 gateways, 20 switches, and two DeltaStream GPON OLTs via the Omada App or Web UI.*

  • Free Cloud Access

    Remotely control the whole network wherever you are in the world

  • On-Premises Management

    Complete privacy

Choose the Right Controller for Your Business

Types On-Premises Controller (Hybrid Cloud) Cloud-Based Controller (Omada Central)
Hardware Software Standard Essentials
Pricing Hardware Costs Free Device License Fee Free
Characteristics
  • No Need to Keep Your PC Running
  • Flexible On-Premises and Cloud Management
  • No Hardware Investment
  • Flexible On-Premises and Cloud Management
  • Advanced Functions for Professional and Comprehensive Network Settings
  • Easy Setup, Use, and Maintenance
  • Essential Features Without the Complexity Required by Larger-Scale Operations
Designed for
  • Small/Medium Local Networks
  • Hotels, Retail, MDU, Small to Medium Offices and Schools
  • Medium/Large Local Networks
  • Hotels, Schools, Retail, MDU, Medium to Large Offices
  • Medium/Large Multi-Site Networks
  • Hotels, Schools, Retail, MDU, Medium to Large Offices
  • Surveillance Networking
  • Hostels
  • Villas / Big Houses
  • Small Offices
Management Scale
  • OC220 / OC200: 130 Devices
  • OC300: 700 Devices
  • OC400: 1,300 Devices
  • Unlimited** (Recommend: ≤ 10,000)
  • Unlimited
  • Unlimited
Cloud Access √ (Free) √ (Free) √ √ (Free)
Zero-Touch Provisioning √ (Beginning Q2 2025) √ (Beginning Q2 2025) √ √
MSP Mode – √ √ –
DPI √ √ √ –
Other PPSK, Open API,†ACL, IPS/IDS, Automatic WLAN Optimization
Essential Management Features Multi-Site Management, Multi-User Privilege Assignment, VLAN, Port Management, Fast Roaming, Mesh
SKU: PCK18427 Categories: , ,
Brand Name

TP-Link
HARDWARE FEATURES
Interface • 2× Gigabit Ethernet Ports
• 1× USB 2.0 Port
• 1× Micro USB Port
Power Supply • 802.3af PoE
• Micro USB（DC 5V/Minimum 1A）
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Management Features
Omada App Yes
Centralized Management • 100 Omada access points
• 10 Omada gateways
• A maximum of 20 Omada switches*
• A maximum of two select DeltaStream GPON OLTs*

Note: Please refer to <href=”https: www.omadanetworks.com=”” en=”” business-networking=”” all-omada=”” “=””>www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220
*The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.</href=”https:>
Cloud Access Yes
L3 Management Yes
Multi-site Management Yes
Management Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Content • Omada Hardware Controller OC220
• Quick Installation Guide
• RJ45 Ethernet Cable
System Requirements Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment • Operating Temperature: -5–50 ℃ (23–122 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
