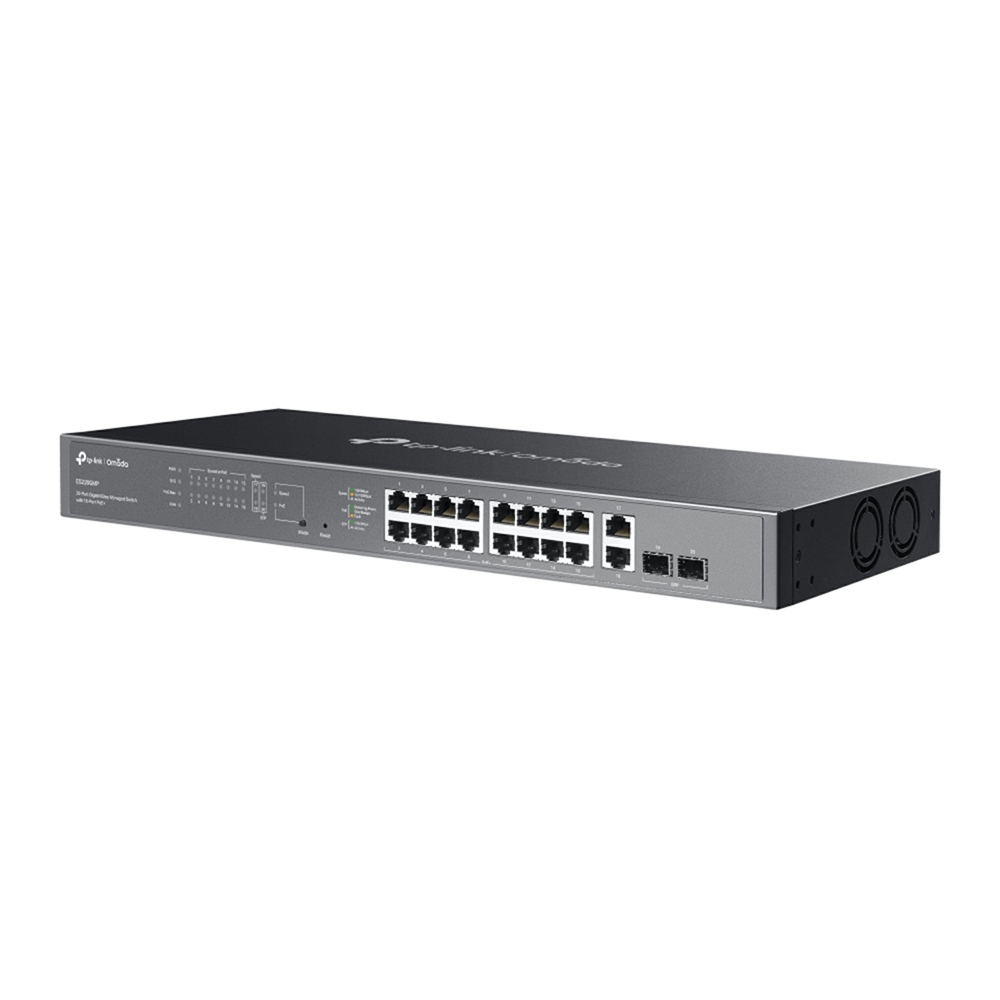

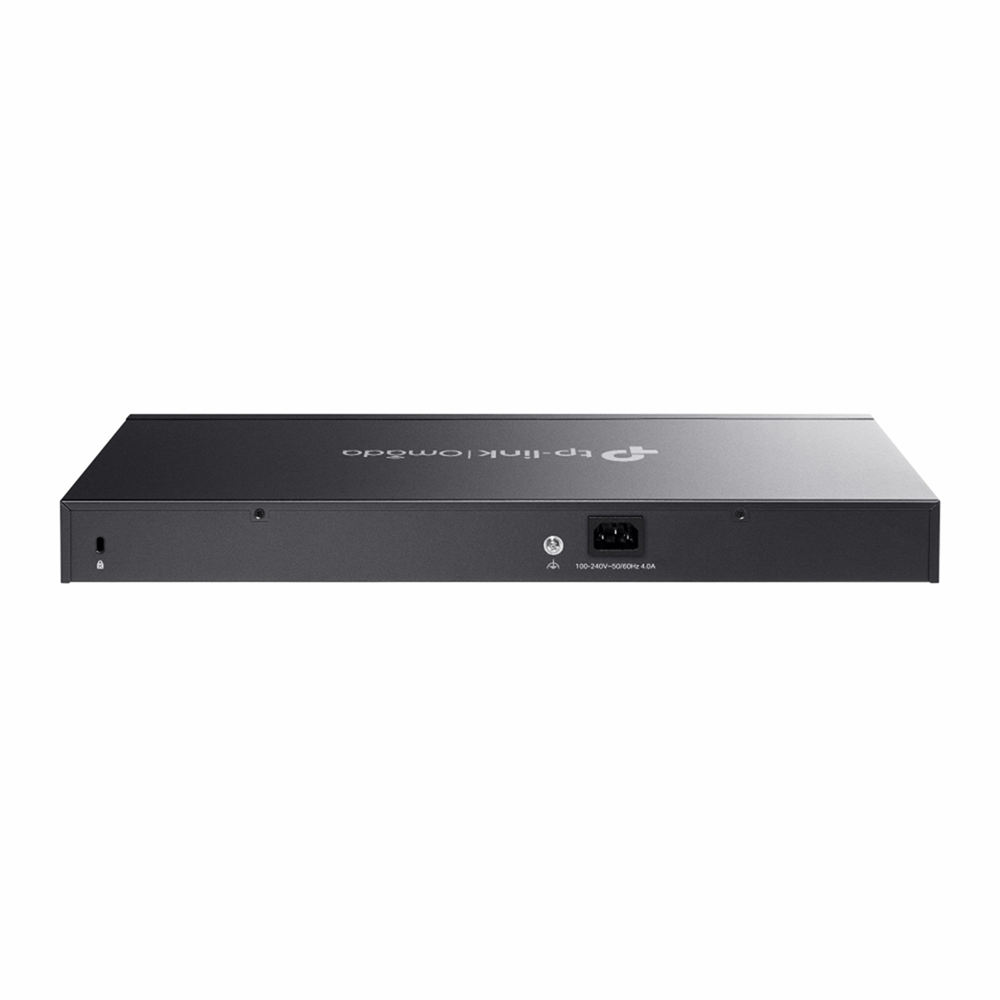

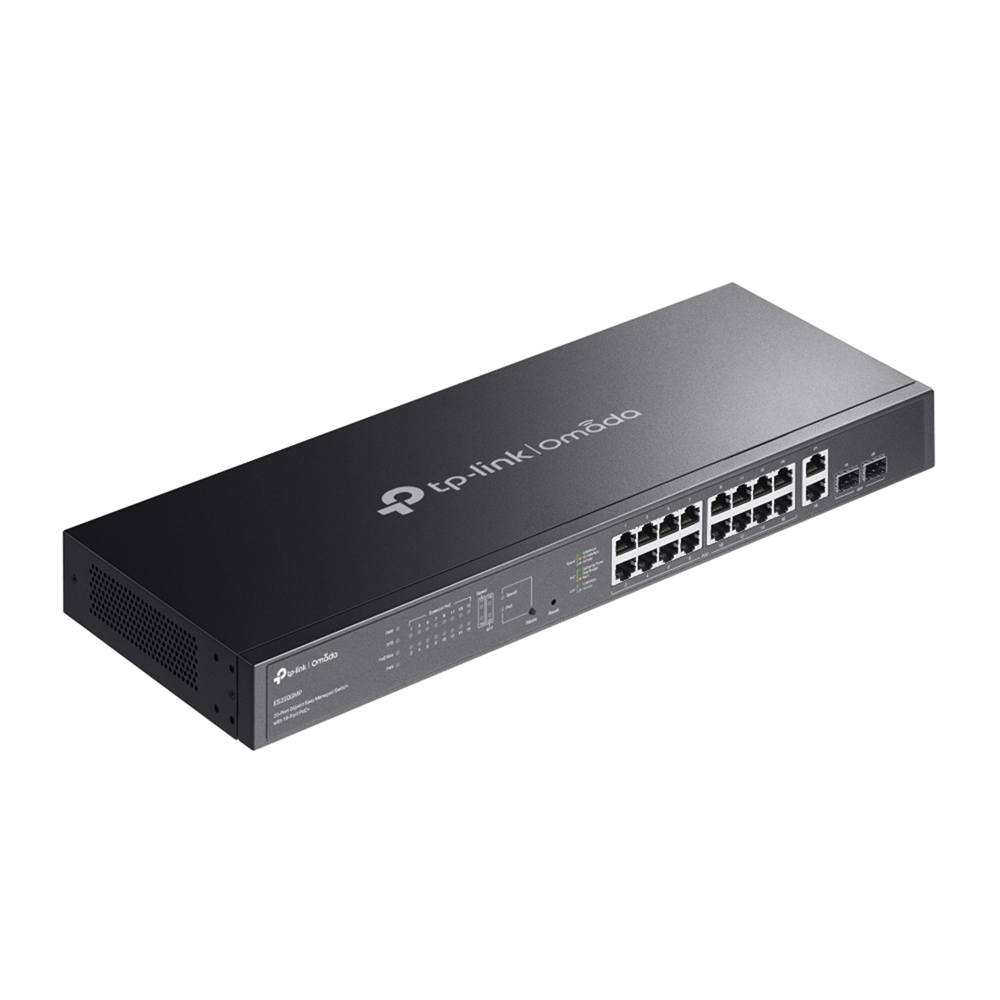

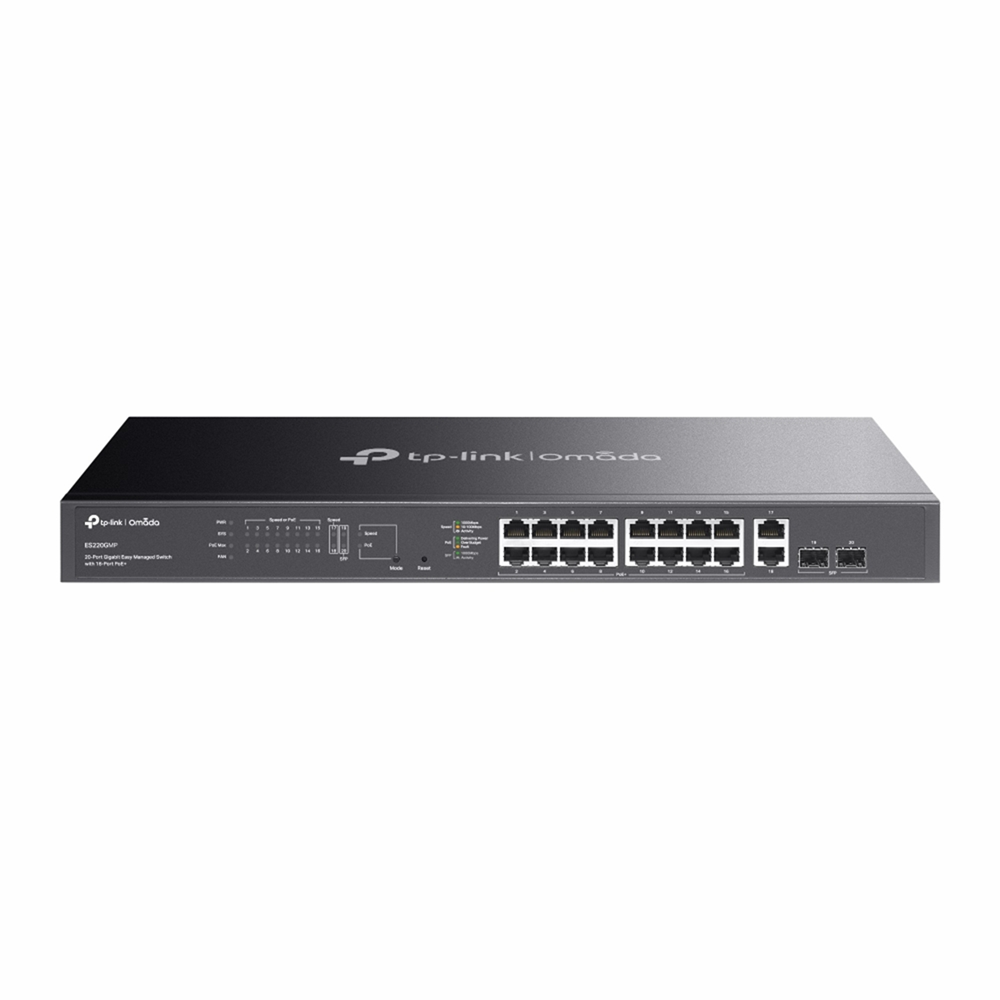

TP-Link Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (250W)
TP-Link Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (250W) - Image 2
TP-Link Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (250W) - Image 3
TP-Link Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (250W) - Image 4
ES220GMP
ES220GMP123
ES220GMP12
ES220GMP1
, , ,

TP-Link Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ (250W)

Product Code: ES220GMP SKU: PCK17896 Categories: , , ,
TP-Link
Availability:

In stock

TP-Link

2× Gigabit RJ45 ports, 2× Gigabit SFP Slots
16× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
250W Power Budget, with up to 30W for each PoE port*
Centralized Cloud Management via the web or the Omada app



KD 45.000

In stock

Buy Now

TP-Link

  • 16× Gigabit 802.3af/at-compliant PoE+ RJ45 ports
  • 2× Gigabit RJ45 ports, 2× Gigabit SFP Slots
  • 250W Power Budget, with up to 30W for each PoE port*
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app†
  • Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Durable metal casing and rack-mountable design

  • 20× Gigabit Ports (16× PoE+, 2× RJ45, 2× SFP)

  • 250 W Total PoE Budget*

  • Up to 250m PoE Transmission**

  • Easy Centralized Management†

  • Automatic Loop Prevention

  • PoE Auto Recovery‡

  • Traffic Separation

  • Traffic Prioritization△

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don’t require the complexity of larger operations.



SKU: PCK17896 Categories: , , ,
Brand Name

TP-Link
Features

16-Port, Gigabit, Manageable, Managed Switch, PoE Switch
HARDWARE FEATURES
Interface • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmountable
Physical Security Lock √
Power Supply 100–240V AC, 50/60Hz
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 16 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection ±6kV
PERFORMANCE
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.76 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
– WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
– Port-Based Rating Limit
• Storm Control
– Multiple Control Modes (kbps/pps)
– Broadcast/Multicast/Unknown-Unicast Control△
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
– 802.3x Flow Control
• Mirroring
– Port Mirroring
– One-to-One
– Many-to-One
– Ingress/Egress/Both
• Port Statistics
– Port Mirror Status
– Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
– IGMP v1/v2/v3 Snooping
– Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
– Max 32 VLAN Groups
– 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Content • ES220GMP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
Environment • Operating Temperature: -5℃~50℃ (23℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
